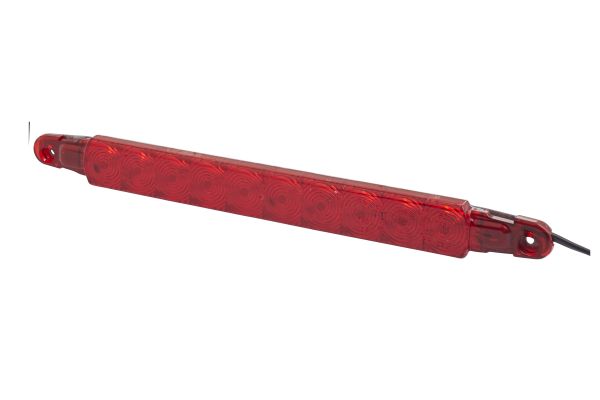

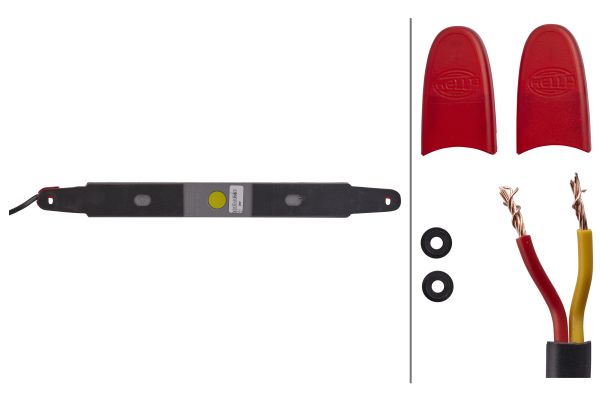

2DA343106001 Auxiliary Stop Light1 HELLA AUXILIARY STOP LIGHT LED
Technical Information:
Regarding single or double function lamps with LEDs without
flasher function
In connection with these low powers, which are
very different from bulb versions, there can be
problems during operation on various traction vehicles
because further lighting functions are detected
by some traction vehicles. This is a vehicle
comfort function which is not required by legislation and
does not release drivers from their obligation
to see for themselves that the lighting equipment
is working.
Here, too, faulty diagnoses can be a result of the lower
power levels involved (instrument panel in the driver cab
indicates a bulb failure although the function
is working).
The functional ability of these light failure checks can
only be established by the vehicle manufacturer.
Operation of the light with alternating current or pulsed
direct current is not permitted!
The individual light functions may only be operated with a
vehicle fuse of max. 3A.
In the case of onboard current limitation with the values
specified above by the onboard control unit
an additional fuse for the lamp is not required.
Viewed
1) Installation instructions are not included in all instances. If you or your customers require installation instructions, please ask before ordering. All products should be installed only according to the intended purpose and only by specialist trained personnel. 2) The parts offered are reproductions. The specified original replacement parts numbers are for the purpose of comparison. This information has been complied to the best of our abilities, but errors cannot be excluded. We are unable to accept liability for the accuracy of the specifications. The capability for use must be checked before each installation.
