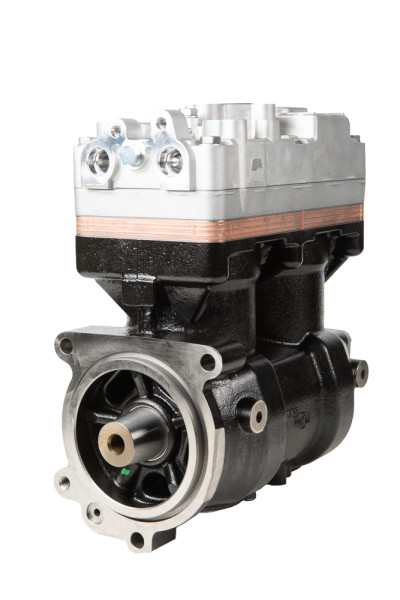

K172098X00 Compressor, compressed-air system1 KNORR BREMSE COMPRESSOR
Technical Information:
Title Extension: NGS ESS SCANIA 720cc
Air Inlet port(s) size: 30
Air Delivery port(s) size: 16.2
Cubic Capacity: 720
Compressor Mounting: Flange
With Through Drive: Yes
Crankshaft taper diameter: 36 mm
With ESS feature: Yes
Unloader port(s) size: M10x1.0
Lubrication: with Engine Oil
Oil supply port size: 16,3mm
Cooling: Water
Water port(s) size: 16.15
Water cooled valve plate: Yes
Supplied with clutch: No
Supplied with Drive Gear: Yes
Supplied with Safety Valve: No
Max. Delivery Pressure: 12.5
Cooling plate: Yes
Viewed
1) Installation instructions are not included in all instances. If you or your customers require installation instructions, please ask before ordering. All products should be installed only according to the intended purpose and only by specialist trained personnel. 2) The parts offered are reproductions. The specified original replacement parts numbers are for the purpose of comparison. This information has been complied to the best of our abilities, but errors cannot be excluded. We are unable to accept liability for the accuracy of the specifications. The capability for use must be checked before each installation.
