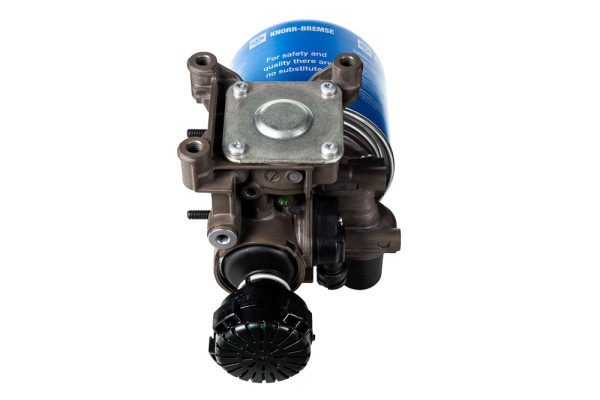

K116869N50 Air Dryer, compressed-air system1 AIR DRYER
Technical Information:
Air Inlet port(s) size: M22×1,5
Air Delivery port(s) size: M22×1,5
Purge control: Timed Purge
Safety valve pressure [bar]: 13
Unloader cut-out pressure [bar]: 10+/-0,2
Unloader pressure control range [bar]:
1,25+/-0,25
With internal Silencer: No
Exhaust Connector: Snap-on Connector
Exhaust Silencer fitted: Yes
Heater Connector Type:
Bayonet ISO 15170 A1 2.1.1.Ag/K3
Heater Voltage [volts]: 24
Cartridge type: Conventional
Cartridge connection type: M41x1,5 right hand thread
Viewed
1) Installation instructions are not included in all instances. If you or your customers require installation instructions, please ask before ordering. All products should be installed only according to the intended purpose and only by specialist trained personnel. 2) The parts offered are reproductions. The specified original replacement parts numbers are for the purpose of comparison. This information has been complied to the best of our abilities, but errors cannot be excluded. We are unable to accept liability for the accuracy of the specifications. The capability for use must be checked before each installation.
