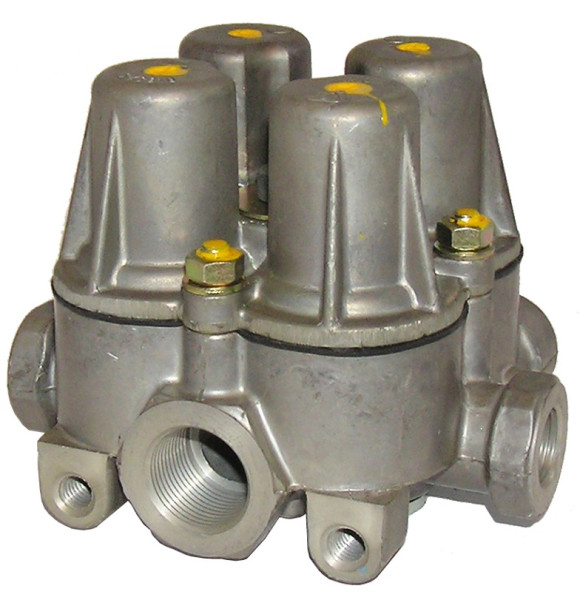

II15587000 Multi-circuit Protection Valve1 FOUR CIRCUIT PROT. VALVE
Technical Information:
Air Inlet port(s) size: M22x1,5
Air Delivery port(s) size: M16x1,5
Circuit 1: Feedback with Bypass
Circuit 1 - Open/close pressure [bar]:
7,0-0,3 / >4,7
Circuit 1 - Pressure Limiting [bar]: Not included
Circuit 2: Feedback with Bypass
Circuit 2 - Open/close pressure [bar]:
7,0-0,3 / >4,7
Circuit 2 - Pressure Limiting [bar]: Not included
Circuit 3: Non-feedback with no bypass
Circuit 3 - Open/close pressure [bar]:
5,7-0,3 / >4,7
Circuit 3 - Pressure Limiting [bar]: Not included
Circuit 4: Non-feedback with no Bypass
Circuit 4 - Open/close pressure [bar]:
5,7-0,3 / >4,7
Circuit 4 - Pressure Limiting [bar]: Not included
Bleed-back safety feature:
Not included
Circuits' supply:
Internal series supply from Circuits 1 and 2 to 3 and 4
With Electrical pressure sensing: No
